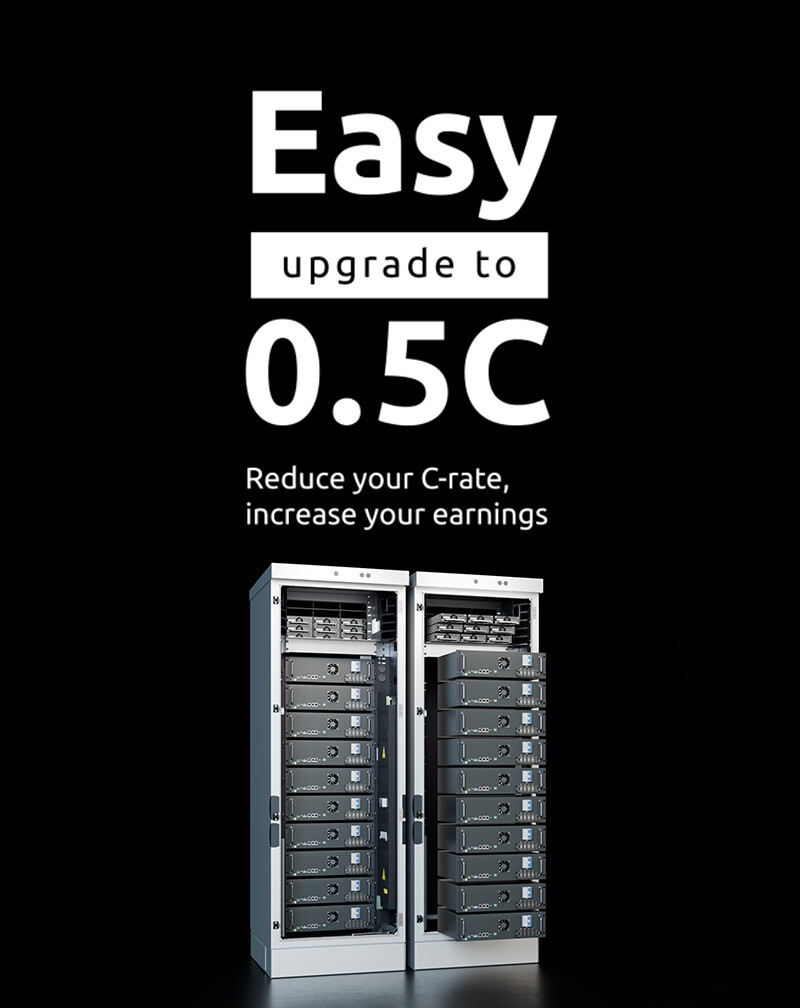

Reduce your C-rate, increase your earnings

Upgrading your Pixii system to a lower C-rate allows you to participate in higher-value frequency regulation and balancing markets.

Adding more energy to your system will increase your revenue

Upgrading your Pixii systems to reach a lower C-rate will allow you to increase bidding volumes into the more lucrative FCR-N, aFRR and mFRR markets.

When upgrading your BESS to achieve a lower C-rate, take advantage of the opportunity to add enough energy to exceed the 100kW threshold for FFR participation.

StackGraphforC-rate

Simulation by a Nordic aggregator:
Based on bidding in SE4 from Feb 1, 2024, to Jan 31, 2025, covering FCR-D Up, FCR-D Down, FCR-N, and Arbitrage services. Simulated system: ~100kW max power, 100kWh (1C) to 200kWh (0.5C) total capacity

What will you need to upgrade your current system?


Necessary Components for PowerShaper when you upgrade from 1C to 0.5C

  1. PowerShaper 50kW/50kWh to 60kW/100kWh
    • +3 Pixiiboxes
    • +1 Cabinet
    • +10 Batteries
  2. PowerShaper 100kW/100kWh to 115kW/200kWh
    • +1 Multi cabinet switch*
    • +6 Pixiiboxes
    • +2 Cabinets

 For larger systems, an extra Multi cabinet switch for every 6 cabinets is required.

* If your aggregator is either CheckWatt or Current no extra components may be needed

Get in touch with your local wholesaler

 Pixii's authorized dealers in Sweden:

Rexel
ahlsell
Krannich

If you can’t reach your wholesaler, please contact Pixii

This is what you need to lower the C-rate on your current systems

PowerShaper

From 1→2

Upgrade from ±48kW/50kWh (1C) to <50kW/100kWh (0.5C)

  • 1 x Pixii PowerShaper FF (cabinet only)
    12504 / 27 600 52
  • 12-15 x Pixiibox dummy panel
    14113 / 27 600 57
  • 10 x LFP battery 100Ah 16S 3U 19″
    14656 / 27 600 59
  • RECOMMENDED:
    3 x PixiiBox 48/330 Multi-function power conversion unit
    12000 / 27 600 58

PowerShaper

From 2→4

Upgrade from ±97kW/100kWh (1C) to <100kW/200kWh (0.5C)

  • 2 x Pixii PowerShaper FF (cabinet only)
    12504 / 27 600 52
  • 24-30 x Pixiibox dummy panel
    14113 / 27 600 57
  • 20 x LFP battery 100Ah 16S 3U 19″
    14656 / 27 600 59
  • 1 x Multi cabinet switch*
    13601 / 27 600 64
  • RECOMMENDED:
    6 x PixiiBox 48/330 Multi-function power conversion unit
    12000 / 27 600 58

PowerShaper

From 4→8

Upgrade from ±192kW/200kWh (1C) to <200kW/400kWh (0.5C)

  • 4 x Pixii PowerShaper FF (cabinet only)
    12504 / 27 600 52
  • 48-60 x Pixiibox dummy panel
    14113 / 27 600 57
  • 40 x LFP battery 100Ah 16S 3U 19″
    14656 / 27 600 59
  • 1 x Multi cabinet switch*
    13601 / 27 600 64
  • RECOMMENDED:
    6 x PixiiBox 48/330 Multi-function  power conversion unit
    12000 / 27 600 58

PowerBase

From 1→2

Upgrade from ±576kW/600kWh (1C) to <600kW/1200kWh (0.5C)

  • 1 x Pixii PowerBase 600 FF (base + cabinets)
    12701 / 27 600 55
  • 144-180 x Pixiibox dummy panel
    14113 / 27 600 57
  • 120 x LFP battery 100Ah 16S 3U 19″
    14656 / 27 600 59
  • RECOMMENDED:
    36 x PixiiBox 48/330 Multi-function two port power conversion unit
    12000 / 27 600 58

* You need 1 x Multi cabinet switch (13601)  for every 6. cabinet.
If you use CheckWatt or Current as aggregator the multi cabinet switch is normally not needed.

Based on third-party simulations. Pixii AS reserves the right to make changes or corrections.

Reliability and uptime matters

SLA positive

When participating in energy markets, your system must be ready to deliver, every time. Downtime can be costly, and failing to meet commitments after winning a bid isn’t an option.

Our service level agreements (SLAs) ensure your system stays operational, optimized, and within warranty terms. With expert maintenance and support, you maximize uptime, extend equipment life, and protect your investment.

Request a quote
Compare SLA tiers

Update your SLA to ensure peak performance for your Pixii BESS

Submit the form, and you’ll be contacted shortly by one of our specialists to discuss and optimize an SLA that meets the requirements for your systems.
